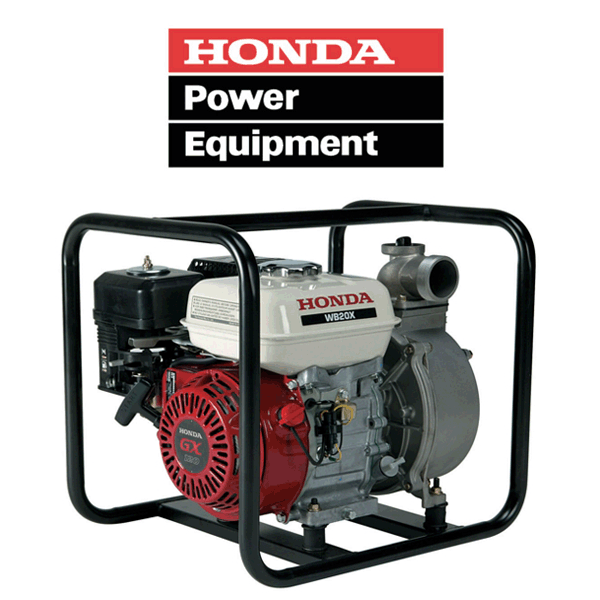

Honda WB20XK2 General Purpose Dewatering Pump

General purpose 2" pump

Easy starting Honda OHV commercial engine

152 gal./min. capacity

Silicon carbide mechanical seal

Cast iron volute and impeller

Heavy duty full frame protection

Isolation mounted engine and pump

Protected by Honda Oil Alert®

3 year residential/commercial warranty

Engine - GX120

Displacement - 118cc

Bore and stroke - 2.4" x 1.7"

Compression Ratio - 8.5:1

Oil Alert - Std

Pump type - Centrifugal, Self-priming

Volute - Rigid Mounted Cast Iron

Impeller - Cast Iron

Mechanical Seal - Silicon Carbide/Silicon Carbide

Priming time - 110 sec @ 16.4 ft.

Drive system - Direct

Discharge capacity - 152 gal/min.

Suction port diameter - 2" NPT

Discharge port diameter - 2" NPT

Total head lift - 92 ft.

Suction head lift - 26 ft.

Maximum pressure - 40 psi

Solids handling - N/A

Dimensions (LxWxH) - 17.9" x 14.4" x 16.5"

Dry weight - 46 lb.

Strainer Part # - 78325-YG3-000

Residential Warranty - 3 years Commercial Warranty - 3 years
